Thermoscreed Loose Wire In-Screed Heating Cable Including 5220A Thermostat



In Screed Heating

Thermoscreed is ideal for new build projects where height build up is not limited. Designed for use in 20 – 50mm screed layers. In Screed heating systems allow the floor layer to prepare a perfectly flat floor to lay the floor covering over. Thermoscreed is suitable for almost any flooring finish including wood, carpet and vinyl.

Thermoscreed is a versatile heating cable designed for installation in the screed layer of new builds or renovation projects. It creates an energy efficient heating system by warming the screed to create a slow release thermal mass. Suitable for use with sand and cement, anhydrite and flow screeds.

Full kit ready for installation

The Thermoscreed matting is available in a kit which includes all the items (except insulation) that you will require for installation of your underfloor heating.  Please note: The cloth tape is the standard fixing method and is included in the kits however alternate fixing methods are available.

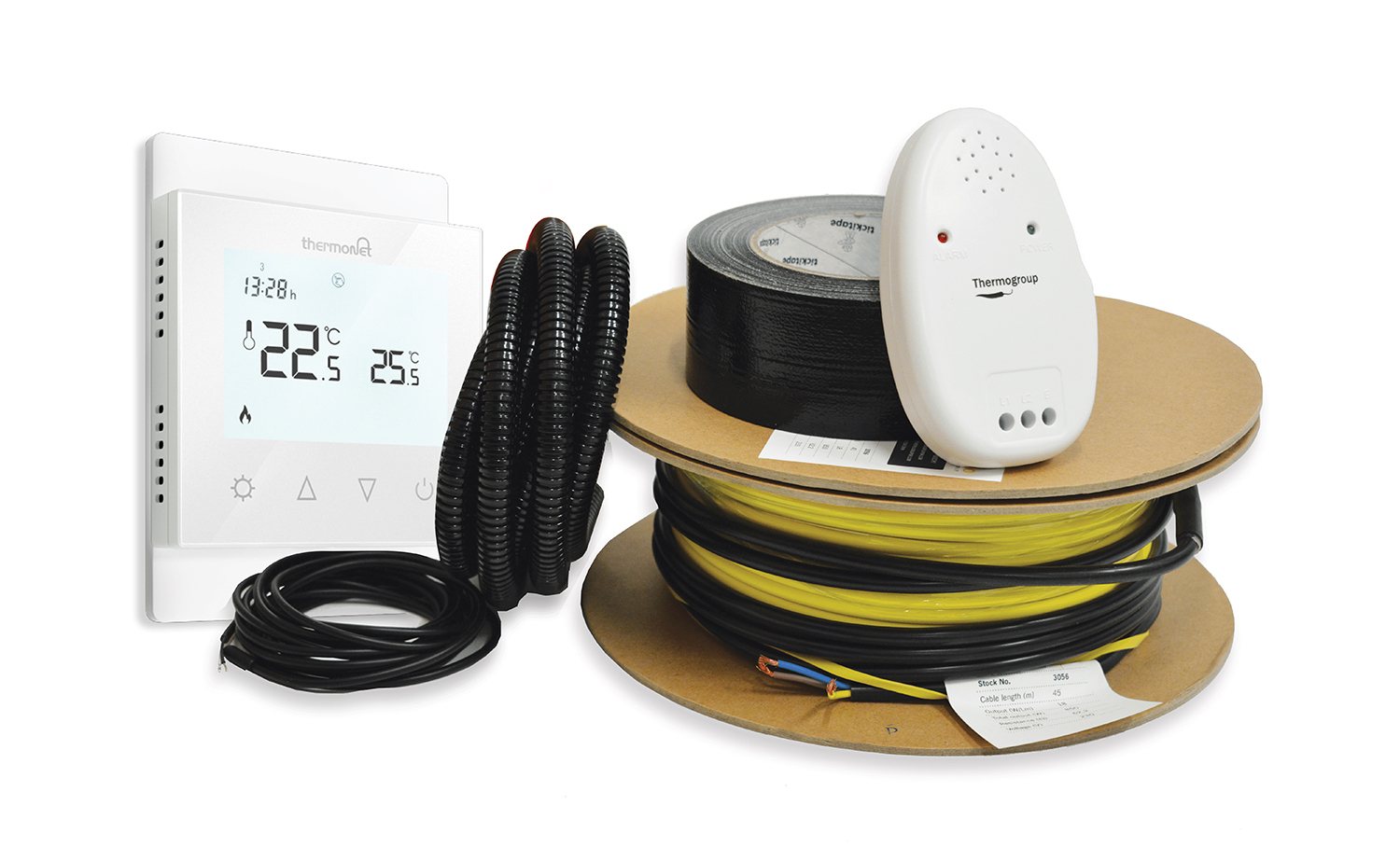

Kit items include: Thermoscreed Cable, Cloth tape, White Programmable Thermostat (5220A), Floor Temperature Sensor, Sensor Conduit, Cable Monitor(6025), Installation Guide & Warranty Form.

Lifetime warranty

We are so confident in the quality of Thermoscreed Underfloor Heating that we give each system a warranty that lasts a lifetime with 3 year warranty on the thermostats. Our manufacturing will be moving to the UK, find out more.

Robust, hard wearing cable

The advanced protective PVC coating on Thermoscreed cables protects the heating element during installation and provides a long product life span.

In Screed heating

Suitable for installation in screeds of 20mm to 50mm, and is recommended to be fixed to insulation boards.

Efficient storage heating effect

In Screed systems have a slower heat up and cool down time and are suited to rooms that are in constant use.

Flexible cable spacing

The heating output per m² can be adjusted by varying the cable spacing to achieve your architects designed heating output for the room. We recommend an output of 180-220m² under screed.

Click here for Data Sheet

Click here for Full User Manual



SKU 305T
Brand Thermowire
