Cabac Ripple Signal Filter

Electricity suppliers for certain geographical areas of New South Wales and Queensland inject an off-peak ripple control signal onto their distribution networks in order to remotely control devices such as hot water systems. This allows for access to cheaper off-peak electricity, but can have an unfortunate effect on electrical appliances that are sensitive to the superimposed control signal.

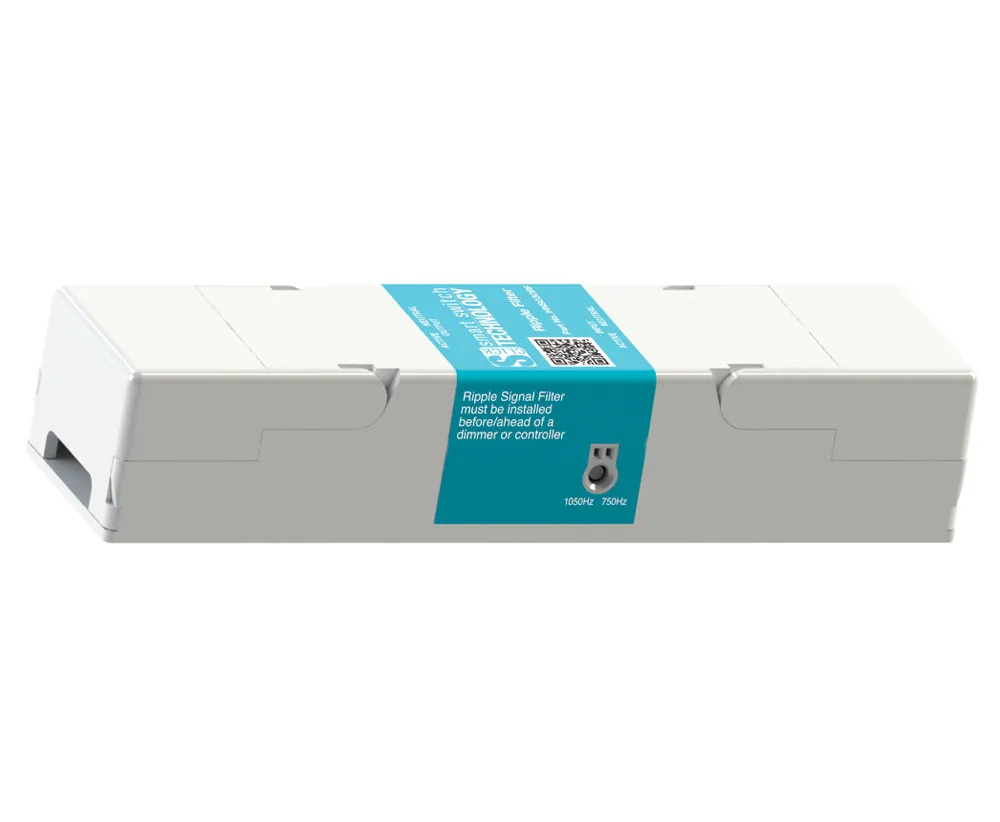

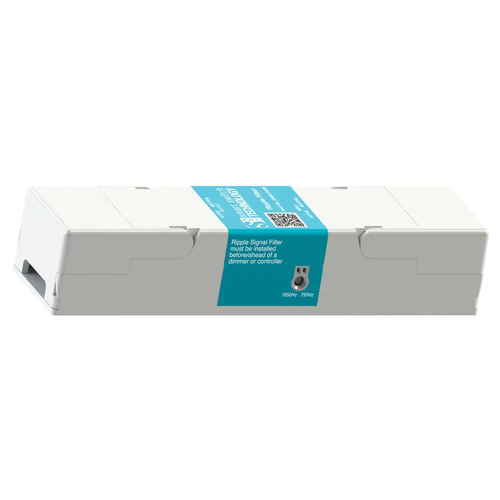

Our HNS030RF ripple signal filter is a simple and easy-to-install solution to this problem, preventing the unwelcome effects of ripple signal events such as flickering LED lights or loud, buzzing fans. The ripple signal filter is a tuned passive inline filter which eliminates the superimposed ripple injection control signal from the normal mains supply to create a noise free filtered mains supply which can then be connected to the electrical appliances or light control systems. The device is designed to fit through a downlight hole and is compatible with LED, Halogen, CFL and Incandescent lamps.

With models available for 750Hz and 1050Hz frequency, we can supply an option to suit most affected areas.

• Simple and easy to install
• Ripple signal flicker free with S-Click dimmers
• Works with LED, halogen, CFL and incandescent lamps
• Designed to fit through downlight hole

Click here for Data Sheet
